最受欢迎的PD source产品

PD Source介绍性文字,PD Source介绍性文字,PD Source介绍性文字, 高性能、高集成度的USB Type-C Power Delivery (电力传输)控制器。它 集成了PD3.0、PD2.0、PPS、HVDCP和BC1.2等协议。HUSB338L适用于电 源适配器、手机充电器、车载充电器和移动电源等应用场合。HUSB338L 有SOP-14和QFN-16两种封装。通过USB PD2.0认证,TID号 1000151. XID 号 0005398。通过USB PD3.0认证,TID号 1000189. XID号 0005399。

产品列表

Part No. PD3.0 PDO Range PPS Apple 5V2.4A QC2.0/3.0 AFC & FCP SCP Rsense Multi-output Support VCONN & eMarker Detect Program Memory VBUS Switch Cable IR Compensation Package Power Range
HUSB338A FPDO 5V-12V - - - - 5mΩ - - One-time External P-MOS 100mΩ QFN4x4-16L 18W
HUSB338C FPDO 5V-12V APDO 3V-11V 5V Prog & 9V Prog 5mΩ - - One-time External N-MOS & P-MOS 0, 50mΩ, 100mΩ QFN3x3-16L 18~36W
HUSB338L FPDO 5V-15V APDO 3V-16V One APDO - - - 5mΩ - - One-time External P-MOS 0 and 100mΩ SOP-14L QFN4x4-16L 18~45W
HUSB339A FPDO 5V-12V - - - 5mΩ - - One-time External P-MOS 100mΩ QFN4x4-16L 18W
HUSB339B FPDO 5V-12V - - 5mΩ - - One-time External P-MOS 50mΩ QFN4x4-16L 20W
HUSB339 FPDO 5V-23.5V APDO 3V-21V Two APDOs - - 5mΩ Y Y Multi-time External P-MOS 0, 50mΩ, 100mΩ, 150mΩ SOP-14L QFN4x4-16L 18~100W
HUSB350 PDO 5V-23.5V APDO 3V-21V Three APDOs - 5mΩ Y Y Multi-time External P-MOS 0, 50mΩ, 100mΩ, 200mΩ SOP-14L QFN4x4-16L 18~100W
HUSB351 FPDO 5V-12V APDO 3V-11V 5V Prog & 9V Prog Internal - - One-time Internal N-MOS 0, 50mΩ, 100mΩ, 150mΩ DFN3x3-9L 18~36W
HUSB360 FPDO 5V-23.5V APDO 3V-21V Three APDOs - - - - 5mΩ - Y Multi-time External N-MOS 0, 50mΩ, 100mΩ, 200mΩ SSOP-10L Inbox 18~100W
HUSB361 FPDO 5V-23.5V APDO 3V-21V Three APDOs 5mΩ Y Y Multi-time External N-MOS & P-MOS 0, 50mΩ, 100mΩ, 150mΩ SOP-14L QFN4x4-16L SSOP-10L 18~100W

热门产品

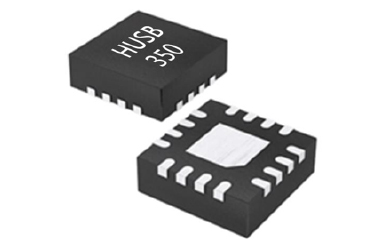

HUSB350
高度集成的USB PD受电端芯片
HUSB350
高度集成的USB PD受电端芯片
HUSB350
高度集成的USB PD受电端芯片
