提供高可靠性的PD DRP产品

慧能泰推出的USB PD DRP控制器，包含专门用于TCPC（Type-C Port Controller）的PD PHY芯片和全功能的PD DRP芯片等。其中PD PHY芯片可以支持PD3.0扩展命令和PPS命令，具有耐压高、功耗低、支持不同I2C地址等多个优势。

Part No.	PD2.0	PD3.0	VDD Range	CC1/CC2 Max Voltage	VBUS Max Voltage	Standby Power Loss	Dead Battery	Power Role Swap	Ambient Temperature	Package

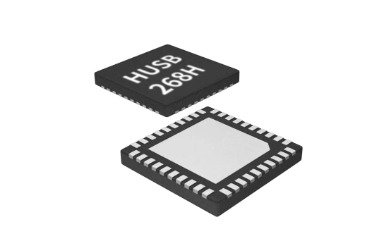

HUSB268H	√	√（PD3.1)	4V~29.4V	33V	33V	1.3mA	√	√	−10 °C ~ 85 °C	QFN5x5-40L

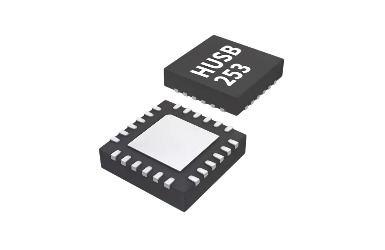

HUSB253	√	√（PD3.1)	4.25V~50.4V	54V	54V	200uA	√	√	−40 °C ~ 85 °C	QFN4x4-24L

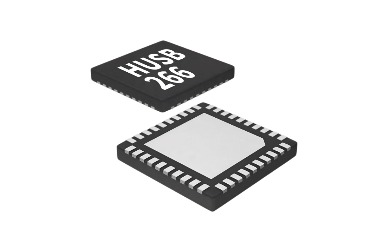

HUSB266	√	√（PD3.1)	3.3V~22V	CC1_A/CC2_A: 24V; CC1_B/CC2_B: 30V	30V	2mA	√	√	−40 °C ~ 85 °C	QFN5x5-40L
HUSB280A	√	√（PD3.1)	3.15V~23V	30V	30V	1mA	√	√	−40 °C ~ 85 °C	QFN5x5-37L
HUSB280	√	√（PD3.1)	3.15V~23V	30V	30V	1.5mA	√	√	−40 °C ~ 85 °C	QFN5x5-37L
HUSB252	√	√（PD3.1)	3.15V~23V	25V	30V	200uA	√	√	−40 °C ~ 85 °C	QFN4x4-24L
HUSB239	√	√（PD3.1)	3V~5.5V	32V	32V	IVDD 50uA	√	√	−40 °C ~ 85 °C	QFN3x3-16L
HUSB251	√	√（PD3.1)	3.15V~29.4V	30V	35V	1mA	√	√	−40 °C ~ 85 °C	QFN4x4-24L
HUSB311C	√	√（PD3.1)	3V~5.5V	24V	30V	33μA	√	√	−40 °C ~ 85 °C	WLCSP-9B
HUSB311	√	√	3V~5.5V	24V	30V	33μA	√	√	−40 °C ~ 85 °C	WLCSP-9B, QFN2.5x2.5-14L
